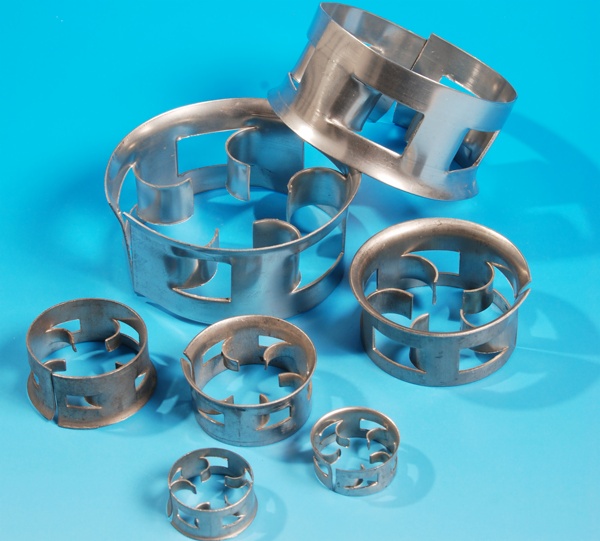

Metal cascade-mini rings

Item Code: Features:
  • Description

Metal cascade-mini rings random tower packings, with one or two bevel edges in their sidepieces, are of more mechanical strength and better gas through capacity than pall rings. In random packed tower, most of the rings point contact (not linearity contact) to each other, contribute to the liquid film liquidity and mass transfer efficiency. Our Metal cascade-mini rings are widely used in petroleum, chemicals, Chlor-Alkali and environmental industries.

Technical Data

A)    Metal cascade-mini rings with TWO bevel edges



Type

Size

Surface area

Void Ratio

Bulk number

Packing factor

(mm)

(m2/m3)

(%)

(Pieces/m3)

(m-1)

0P

17*15*6*0.3

427

94

530,000

55

1P

25*22*8*0.3

230

96

150,000

40

1.5P

34*29*11*0.3

198

97

60,910

29

2P

43*38*14*0.4

164

97

33,170

22

2.5P

51*44*17*0.4

127

97

17,900

17

3P

66*57*21*0.4

105

98

8,800

14

4P

86*76*89*0.4

90

98

5,000

10

5P

131*118*41*0.6

65

98

1,480

7



B)  Metal cascade-mini rings with ONE bevel edge



Size

Surface area

Void Ratio

Bulk number

Packing factor

(mm)

(m2/m3)

(%)

(Pieces/m3)

(m-1)

Φ25

220

96.5

97160

273.54

Φ38

154.3

95.9

31800

185.8

Φ50

109.2

96.1

12300

127.4

Φ76

73.5

97.6

3540

81





鈥籓ther specifications are available upon request.

*Metal random tower packings are made of materials like carbon steel, stainless steel (304, 304L, 410, 316, 316L, etc) and Aluminum alloy, etc. The products have feature such as thin wall, heat resistant, high void ratio, high capacity, low resistance, high separation efficiency and so on. Them are especially suitable for rectification towers under vacuum to treat thermo sensitive, decomposable, polymerizable or cokable systems, so them are widely used in packing towers in petrochemical industry, chemical fertilizer industry and environmental protection, etc.*
