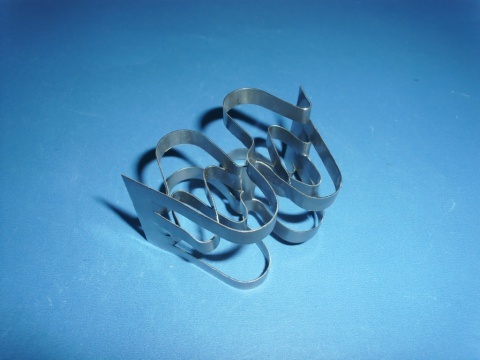

metal super raschig ring

Item Code: Features:
  • Description
Effective mass transfer between the phases demands not only a large interfacial area, but also the most turbulent possible flow conditions and frequent renewal of the phase interfaces. The low specific packing weight of the Metal Super Raschig Ring allows the design of low-cost supporting elements in the columns. It’s also lighter than other packing element designs, but without sacrificing stability. The alternating wave structure additionally prevents entanglement of the packing element within the packing, thus guaranteeing problem-free assembly and dismantling in a column.


Details

Advantage:

  • Lower pressure drop
  • Good liquid/gas distribution and higher mass transfer efficiency
  • Versatility, easily wettable
  • High resistance to fouling
  • High Mechanical Strength
  • Suitable for deeper beds
  • High temperature resistance



Application:

Absorption, Aeration, Degassing, Desorption, Distillation, Stripping, Heat Recovery, Extraction, etc.



Technical Data:

Size

(mm)

Bulk weight

(kg/m3)

Bulk number

(pcs/m3)

Surface Area

(m2/m3)

Void

(%)

15×0.3

240

74000

200

97

18×0.35

185

45500

180

97.5

25*0.4

165

32000

150

98

38*0.5

170

13100

120

98

50*0.5

165

9500

100

98

65*0.5

160

9000

93

98

70*0.5

150

4500

85

98

The above data is reference to material stainless steel in the material thickness shown.

鈥籓ther specifications are available upon request.

*Metal random tower packings are made of materials like carbon steel, stainless steel (304, 304L, 410, 316, 316L, etc) and Aluminum alloy, etc. The products have feature such as thin wall, heat resistant, high void ratio, high capacity, low resistance, high separation efficiency and so on. Them are especially suitable for rectification towers under vacuum to treat thermo sensitive, decomposable, polymerizable or cokable systems, so them are widely used in packing towers in petrochemical industry, chemical fertilizer industry and environmental protection, etc.*
