metal nutter ring

Item Code: Features:
  • Description

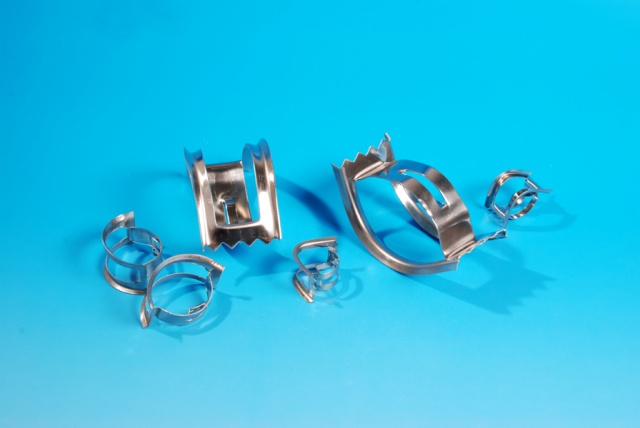

Metal nutter ring random tower packing, designed by Dale Nutter in 1984, of efficiency enhanced by lateral liquid spreading and surface film renewal. Geometry provides maximum randomness with minimum nesting and maximum mechanical strength and superior surface utilization allows for shorter packed beds.The packing used in distillation, absorption and other operations. We produce the nutter rings of sizes 0.7",1",1.5",2",2.5",3".



 Technical Data of Metal Nutter Rings

Size

Specific Surface

Void Fraction

(inch)

(m2/m3)

(ft2/ft3)

(%)

0.7

226

68.9

98

1

170

51.8

98

1.5

124

37.8

98

2

96

29.3

98

2.5

85

25.9

98

3

66

20.1

98



Remark:

Material thickness can be adjusted to clients' needs. Other sizes are available on request.

鈥籓ther specifications are available upon request.

*Metal random tower packings are made of materials like carbon steel, stainless steel (304, 304L, 410, 316, 316L, etc) and Aluminum alloy, etc. The products have feature such as thin wall, heat resistant, high void ratio, high capacity, low resistance, high separation efficiency and so on. Them are especially suitable for rectification towers under vacuum to treat thermo sensitive, decomposable, polymerizable or cokable systems, so them are widely used in packing towers in petrochemical industry, chemical fertilizer industry and environmental protection, etc.*
